This type offers the installation either from top or bottom side of carriage.

Model No. Bolt Size
S1 S2
MSR 20 M6 –
MSR 25 M8 M6
MSR 30 M10 M8
MSR 35 M10 M8
MSR 45 M12 M10
MSR 55 M14 M12
MSR 65 M16 M14

Note*: Single: Single carriage/ Double: Double carriages closely contacting with each other.

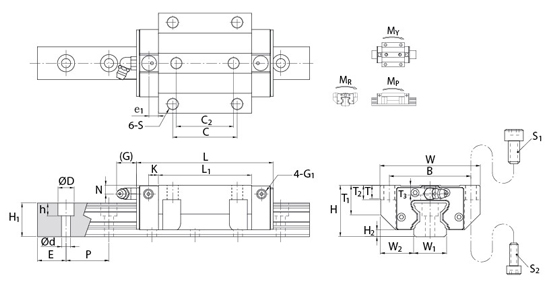

Model No. External dimension Carriage dimension
Height
H		 Width
W		 Length
L		 W2

H2

 B

C

 C2 S L1 T T1 T2 T3 N G K e1 G1 Grease Nipple
MSR 20E 30 63 89.8 21.5 4.6 53 40 35 M6 57.8 10 25.4 10 7.95 5 5.15 4 6.5 M4 G-M4
MSR 25E
MSR 25LE		 36 70 97.5
115.5		 23.5 4.8 57 45 40 M8 65.5
83.5		 9.5 20.2 10 5.8 6 12 6.6 6.5 M6 G-M6
MSR 30E
MSR 30LE		 42 90 112.4
135.2		 31 6 72 52 44 M10 75.9
98.7		 10 21.6 13 6.7 7 12 8 7 M6 G-M6
MSR 35E
MSR 35LE		 48 100 125.3
153.5		 33 6.5 82 62 52 M10 82.3
110.5		 12 27.5 15 9.5 8 12 8 7 M6 G-M6
MSR 45E
MSR 45LE		 60 120 154.2
189.4		 37.5 8 100 80 60 M12 106.5
141.7		 14.5 35.5 15 12.5 10 13.5 10 8 M6 G-PT 1/8
MSR 55E
MSR 55LE		 70 140 185.4
235.4		 43.5 10 116 95 70 M14 129.5
179.5		 17.5 41 18 15.5 11 13.5 12 7.95 M6 G-PT 1/8
MSR 65LE 90 170 300.4 53.5 12 142 110 82 M16 230 19.5 56 20 26 16.5 13.5 12 8 M6 G-PT 1/8



Model No. Rail dimension Basic load rating Static moment rating Weight
Width
W1		 Height
H1		 Pitch
P		 E
std.

D × h × d

 Dynamic C
kN		 Static
Co
kN		 Mp
kN-m		 MY
kN-m		 MR
kN-m		 Carriage
kg		 Rail
kg/m
Single* Double* Single* Double*
MSR 20E 20 20 30 20 9.5 × 8.5 × 6 22.8 60.8 0.51 2.85 0.51 2.85 0.62 0.54 2.6
MSR 25E
MSR 25LE		 23 23.5 30 20 11 × 9 × 7 29.6
36.3		 63.8
82.9		 0.65
1.08		 3.82
5.94		 0.65
1.08		 3.82
5.94		 0.73
0.95		 0.75
0.95		 3.5
MSR 30E
MSR 30LE		 28 27.5 40 20 14 × 12 × 9 42.8
54.0		 91.9
124.0		 1.09
1.96		 6.38
10.60		 1.09
1.96		 6.38
10.60		 1.27
1.75		 1.4
1.72		 5
MSR 35E
MSR 35LE		 34 30.5 40 20 14 × 12 × 9 57.9
73.9		 123.5
169.0		 1.59
2.94		 9.56
16.18		 1.59
2.94		 9.56
16.18		 2.09
2.85		 1.95
2.45		 7
MSR 45E
MSR 45LE		 45 37 52.5 22.5 20 × 17 × 14 92.8
117.2		 193.8
261.6		 3.28
5.90		 18.76
31.32		 3.28
5.90		 18.76
31.32		 4.40
5.94		 3.9
4.5		 11.2
MSR 55E
MSR 55LE		 53 43 60 30 23 × 20 × 16 132.8
172.5		 270.0
378.0		 5.49
10.60		 31.18
55.58		 5.49
10.60		 31.18
55.58		 7.33
10.28		 6
7.9		 15.6
MSR 65LE 63 52 75 35 26 × 22 × 18 277.0 624.0 22.50 117.87 22.50 117.87 20.02 17.6 22.4
