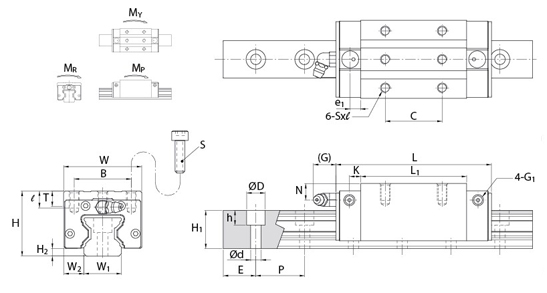

Note*: Single: Single carriage/ Double: Double carriages closely contacting with each other.

Model No. External dimension Carriage dimension
Height
H		 Width
W		 Length
L		 W2

H2

 B

C

 S l L1 T N G K e1 G1 Grease Nipple
MSR 20S 30 44 89.8 12 4.6 32 36 M5 7 57.8 8 5 5.15 4 6.5 M4 G-M4
MSR 25S
MSR 25LS		 40 48 97.5
115.5		 12.5 4.8 35 35
50		 M6 9 65.5
83.5		 9.5 10 12 6.6 6.5 M6 G-M6
MSR 30S
MSR 30LS		 45 60 112.4
135.2		 16 6 40 40
60		 M8 12 75.9
98.7		 10 10 12 8 7 M6 G-M6
MSR 35S
MSR 35LS		 55 70 125.3
153.5		 18 6.5 50 50
72		 M8 14 82.3
110.5		 12 15 12 8 7 M6 G-M6
MSR 45S
MSR 45LS		 70 86 154.2
189.4		 20.5 8 60 60
80		 M10 19 106.5
141.7		 17 20 13.5 10 8 M6 G-PT1/8
MSR 55S
MSR 55LS		 80 100 185.4
235.4		 23.5 10 75 75
95		 M12 19 129.5
179.5		 18 21 13.5 12 7.95 M6 G-PT1/8
MSR 65LS 90 126 300.4 31.5 12 76 120 M16 20 230 19.5 16.5 13.5 12 8 M6 G-PT1/8



Model No. Rail dimension Basic load rating Static moment rating Weight
Width
W1		 Height
H1		 Pitch
P		 E
std.

D × h × d

 Dynamic C
kN		 Static
Co
kN		 Mp
kN-m		 MY
kN-m		 MR
kN-m		 Carriage
kg		 Rail
kg/m
Single* Double* Single* Double*
MSR 20S 20 20 30 20 9.5 × 8.5 × 6 22.8 60.8 0.51 2.85 0.51 2.85 0.62 0.34 2.6
MSR 25S
MSR 25LS		 23 23.5 30 20 11 × 9 × 7 29.6
36.3		 63.8
82.9		 0.65
1.08		 3.82
5.94		 0.65
1.08		 3.82
5.94		 0.73
0.95		 0.65
0.85		 3.5
MSR 30S
MSR 30LS		 28 27.5 40 20 14 × 12 × 9 42.8
54.0		 91.9
124.0		 1.09
1.96		 6.38
10.60		 1.09
1.96		 6.38
10.60		 1.27
1.72		 1
1.22		 5
MSR 35S
MSR 35LS		 34 30.5 40 20 14 × 12 × 9 57.9
73.9		 123.5
169.0		 1.59
2.94		 9.56
16.18		 1.59
2.94		 9.56
16.18		 2.09
2.85		 1.65
2.15		 7
MSR 45S
MSR 45LS		 45 37 52.5 22.5 20 × 17 × 14 92.8
117.2		 193.8
261.6		 3.28
5.90		 18.76
31.32		 3.28
5.90		 18.76
31.32		 4.40
5.94		 3.2
4.1		 11.2
MSR 55S
MSR 55LS		 53 43 60 30 23 × 20 × 16 132.8
172.8		 270.0
378.0		 5.49
10.60		 31.18
55.58		 5.49
10.60		 31.18
55.58		 7.33
10.26		 5.1
7		 15.6
MSR 65LS 63 52 75 35 26 × 22 × 18 277.0 624.0 22.50 117.87 22.50 117.87 20.02 13.3 22.4
