Ballscrew End Support - BK
The Support Unit is compactly designed to accommodate the space in the installation site. As the bearing is provided with an appropriately adjusted preload, the Support Unit can be assembled with a Ball Screw unit with no further machining.

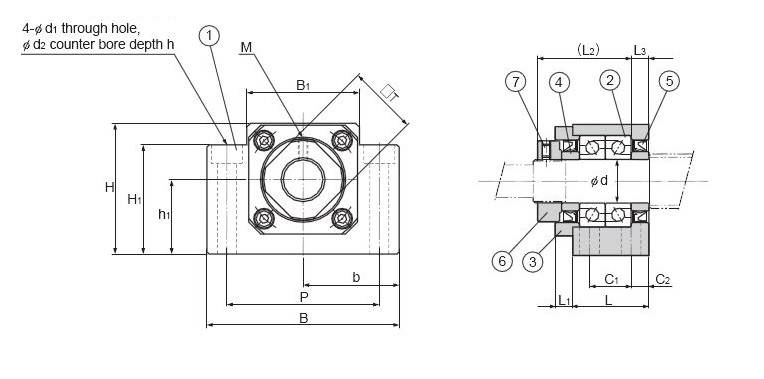

| Included parts | ||
| Part No. | Part name | Qty |
| ① | Housing | 1 |
| ② | Bearing | 1 set |
| ③ | Holding lid | 1 |
| ④ | Collar | 2 |
| ⑤ | Seal | 2 |
| ⑥ | Lock Nut | 1 |
| ⑦ | Hexagonal socket head set screw (with set piece) |
1 |
Units: mm
journal
diameter
d
±0.02
±0.02
equivalent
used
(DF P5)
Ca
permissible
