Ballscrew End Support - BF

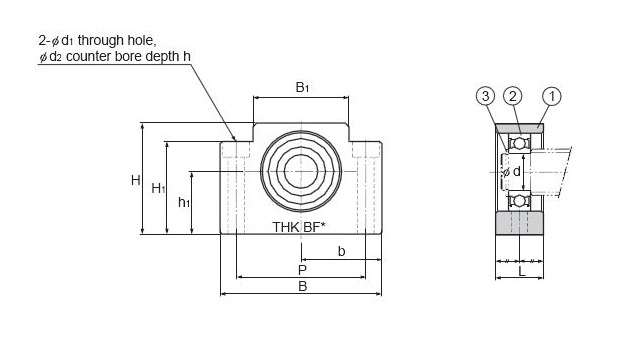

The Support Unit is compactly designed to accommodate the space in the installation site. As the bearing is provided with an appropriately adjusted preload, the Support Unit can be assembled with a Ball Screw unit with no further machining.


Included parts
Part No. Part name Qty
① Housing 1
② Bearing 1
③ Snap ring 1

Units: mm
Model No. Bearing
journal
diameter
d		 L B H b
±0.02		 h1
±0.02		 B1 H1 P d1 d2 h Bearing
used		 Basic load rating
Radial direction
Dynamic
C		 Static
C0
kN kN
BF10820603930223432.5466.610.85608ZZ3.351.4
BF121020604330253532.5466.610.81.56000ZZ4.551.96
BF151520704835284038546.6116.56002ZZ5.62.84
BF171723866443395055689148.56203ZZ9.64.6
BF202026886044345250709148.56004ZZ9.45.05
BF2525301068053486470851117.5116205ZZ147.85
BF30303212889645176781021420136206ZZ19.511.3
BF35353214096705288791141420136207ZZ25.715.3
BF404037160110806010090130182617.56208ZZ29.117.8
 Note: The area marked with “*” is imprinted with a numeric character(s) as part of the model number.
