Linear Bearing with Housing - SC-L

A long version of model SC, this model contains two units of the standard type Linear Bushing in an aluminum casing.

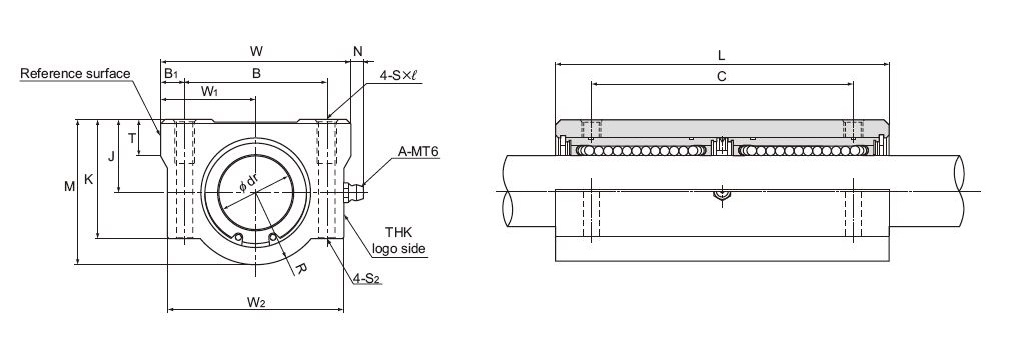

Model No.	Outer dimensions			LM casing dimensions														Model No. of Linear Bushing to be combined	Basic load rating		Mass
	Height M	Width W	Length L	Mounting hole position			Tap S × l	Through bolt S₂	Center height J ±0.02	W₁ ±0.02	K	W₂	T	R	N	Inscribed bore diameter			Dynamic rating C	Static rating C₀
	Height M	Width W	Length L	B	B₁	C	Tap S × l		Center height J ±0.02	W₁ ±0.02	K	W₂	T	R	N	dr	Tolerance		Dynamic rating C	Static rating C₀
	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm			N	N	g
SL6UU	18	30	48	20	5	36	M4×8	M3	9	15	15	28	6	9	7	6	0 -0.009	LM6UU	324	529	68
SL8UU	22	34	58	24	5	42	M4×8	M3	11	17	18	32	6	11	7	8		LM8UU	431	784	105
SL10UU	26	40	68	28	6	46	M5×12	M4	13	20	22	37	8	13	7	10		LM10UU	588	1100	185
SL12UU	29	42	70	30.5	5.75	50	M5×12	M4	15	21	25	39	8	14	6.5	12		LM12UU	657	1200	205
SL13UU	30	44	75	33	5.5	50	M5×12	M4	15	22	26	41	8	15	6.5	13		LM13UU	814	1570	242
SL16UU	38.5	50	85	36	7	60	M5×12	M4	19	25	35	46	9	19.5	6	16		LM16UU	1230	2350	403
SL20UU	42	54	96	40	7	70	M6×12	M5	21	27	36	52	11	21	7	20	0 -0.010	LM20UU	1400	2750	520
SL25UU	51.5	76	130	54	11	100	M8×18	M6	26	38	41	68	12	25.5	4	25		LM25UU	1560	3140	1120
SL30UU	59.5	78	140	58	10	110	M8×18	M6	30	39	49	72	15	29.5	5	30		LM30UU	2490	5490	1440
