Linear Bearing with Housing - SBRL
Aluminum Case Unit - Asian Standard Open Type
|
MODEL NO.
|
SHAFT DIAMETER
|

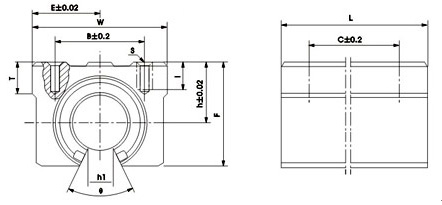

MAIN DIMENSIONS
|
MOUNTING DIMENSIONS
|
WEIGHT(kg)
|
|||||||||||
|
B
|
C
|
S
|
l
|
||||||||||||
|
h
|
E
|
W
|
L
|
F
|
T
|
h1
|
θ
|
||||||||
|
SME16L
|
16
|
20
|
22.5
|
45
|
85
|
33
|
9
|
10
|
80°
|
32
|
60
|
M5
|
12
|
0.29
|
|
|
SME20L
|
20
|
23
|
24
|
48
|
96
|
39
|
11
|
10
|
80°
|
35
|
70
|
M6
|
12
|
0.51
|
|
|
SME25L
|
25
|
27
|
30
|
60
|
130
|
47
|
14
|
11.5
|
80°
|
40
|
100
|
M6
|
12
|
0.98
|
|
|
SME30L
|
30
|
33
|
35
|
70
|
140
|
56
|
15
|
14
|
80°
|
50
|
110
|
M8
|
18
|
1.45
|
|
|
SME40L
|
40
|
42
|
45
|
90
|
175
|
72
|
20
|
19
|
80°
|
65
|
140
|
M10
|
20
|
2.48
|
|
