Linear Bearing Bush - LMK-L

Containing two units of the standard retainer plate, this type is optimal for locations where a moment load is present.

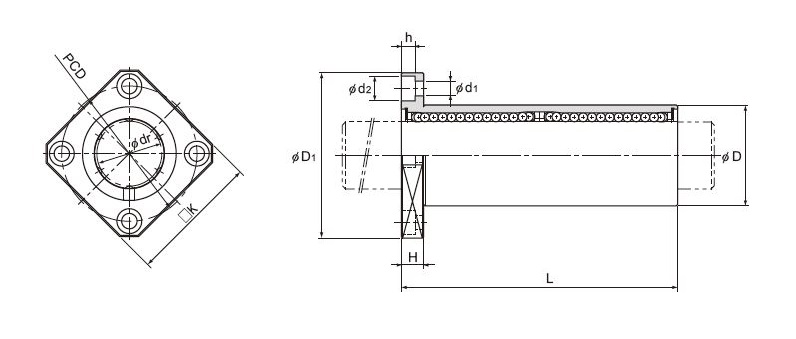

Model No.	Ball rows	Main dimensions												Flange perpen-dicularity	Eccentricity (max)	Radial clearance tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		K	H	PCD	Mounting hole d₁×d₂×h				Dynamic rating C	Static rating C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	D₁	Tolerance	K	H	PCD	Mounting hole d₁×d₂×h				Dynamic rating C	Static rating C₀
		mm		mm		mm		mm		mm	mm	mm	mm	µm	µm	µm	N	N	g
LMK6	4	6	0 -0.010	12	0 -0.013	35	0 -0.3	28	0 -0.2	22	5	20	3.4×6.5×3.3	15	15	–5	324	529	26
LMK8	4	8		15	0 -0.013	45		32		25	5	24	3.4×6.5×3.3	15	15	–5	431	784	46
LMK10	4	10		19	0 -0.016	55		39		30	6	29	4.5×8×4.4	15	15	–5	588	1100	88
LMK12	4	12		21		57		42		32	6	32	4.5×8×4.4	15	15	–5	657	1200	82
LMK13	4	13		23		61		43		34	6	33	4.5×8×4.4	15	15	–7	814	1570	108
LMK16	5	16		28		70		48		37	6	38	4.5×8×4.4	15	15	–7	1230	2350	160
LMK20	5	20	0 -0.012	32	0 -0.019	80		54		42	8	43	5.5×9.2×5.4	20	20	–9	1400	2750	230
LMK25	6	25		40		112	0 -0.4	62		50	8	51	5.5×9.2×5.4	20	20	–9	1560	3140	475
LMK30	6	30		45		123		74		58	10	60	6.6×11×6.5	20	20	–9	2490	5490	575
LMK35	6	35	0 -0.015	52	0 -0.022	135		82		64	10	67	6.6×11×6.5	25	25	–13	2650	6270	870
LMK40	6	45		60		154		96	0 -0.3	75	13	78	9×14×8.6	25	25	–13	3430	8040	1380
LMK50	6	50		80		192		116		92	13	98	9×14×8.6	25	25	–13	6080	15900	3300
LMK60	6	60	0 -0.020	90	0 -0.025	211		134		106	18	112	11×17.5×10.8	25	25	–13	7650	20000	4060
