Ballscrew End Support - FF

The Support Unit is compactly designed to accommodate the space in the installation site. As the bearing is provided with an appropriately adjusted preload, the Support Unit can be assembled with a Ball Screw unit with no further machining.

Included parts

Part No.	Part name	Qty

①	Housing	1
②	Bearing	1
③	Snap ring	1

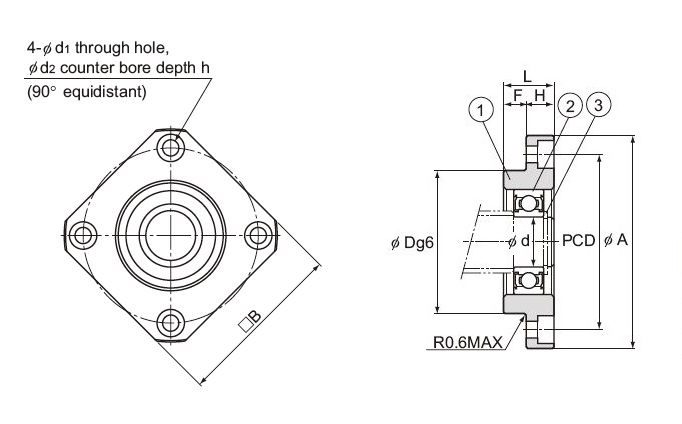

Model No.

Shaft
diameter
d

PCD

d₁

d₂

Bearing
used

Snap
ring
used

Basic load rating

Mass

Radial direction

Dynamic
C

Static
C₀

FF6

22^-0.007_-0.02

3.4

6.5

606ZZ

2.19

0.87

0.04

FF10

28^-0.007_-0.02

3.4

6.5

608ZZ

3.35

1.4

0.07

FF12

34^-0.009_-0.025

4.5

6000ZZ

C10

4.55

1.96

0.11

FF15

40^-0.009_-0.025

5.5

9.5

5.5

6002ZZ

C15

5.6

2.84

0.2

FF20

57^-0.01_-0.029

6.6

6.5

6204ZZ

C20

12.8

6.65

0.27

FF25

63^-0.01_-0.029

8.5

6205ZZ

C25

7.85

0.67

FF30

75^-0.01_-0.029

117

17.5

6206ZZ

C30

19.5

11.3

1.07

Note: The area marked with “*” is imprinted with a numeric character(s) as part of the model number.
