Linear Bearing Bush - LMF

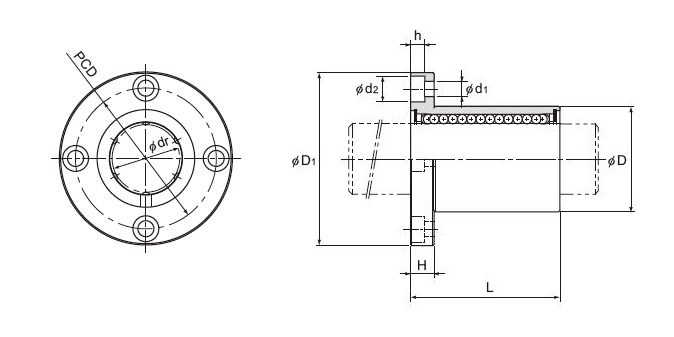

The nut of the standard type Linear Bushing is integrated with a flange. This enables the Linear Bushing to be directly mounted onto the housing with bolts, thus achieving easy installation.


Model No.	Ball rows	Main dimensions											Flange perpen-dicularity	Eccentricity (max)	Radial clearance tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		H	PCD	Mounting hole d₁×d₂×h				Dynamic rating C	Static rating C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	D₁	Tolerance	H	PCD	Mounting hole d₁×d₂×h				Dynamic rating C	Static rating C₀
		mm		mm		mm		mm		mm	mm	mm	µm	µm	µm	N	N	g
LMF6	4	6	0 -0.009	12	0 -0.011	19	0 -0.2	28	0 -0.2	5	20	3.4×6.5×3.3	12	12	–5	206	265	26.5
LMF8S	4	8		15		17		32		5	24	3.4×6.5×3.3	12	12	–5	176	225	34
LMF8	4	8		15		24		32		5	24	3.4×6.5×3.3	12	12	–5	265	402	40
LMF10	4	10		19	0 -0.013	29		39		6	29	4.5×8×4.4	12	12	–5	373	549	78
LMF12	4	12		21		30		42		6	32	4.5×8×4.4	12	12	–5	412	598	76
LMF13	4	13		23		32		43		6	33	4.5×8×4.4	12	12	–7	510	775	94
LMF16	5	16		28		37		48		6	38	4.5×8×4.4	12	12	–7	775	1180	134
LMF20	5	20	0 -0.010	32	0 -0.016	42		54		8	43	5.5×9.2×5.4	15	15	–9	863	1370	180
LMF25	6	25		40		59	0 -0.3	62		8	51	5.5×9.2×5.4	15	15	–9	980	1570	340
LMF30	6	30		45		64		74		10	60	6.6×11×6.5	15	15	–9	1570	2750	460
LMF35	6	35	0 -0.012	52	0 -0.019	70		82		10	67	6.6×11×6.5	20	20	–13	1670	3140	795
LMF40	6	45		60		80		96	0 -0.3	13	78	9×14×8.6	20	20	–13	2160	4020	1054
LMF50	6	50		80		100		116		13	98	9×14×8.6	20	20	–13	3820	7940	2200
LMF60	6	60	0 -0.015	90	0 -0.022	110		134		18	112	11×17.5×10.8	25	25	–13	4710	10000	2960

Model	Nominal shaft diameter (mm)	Case material	Retainer material	Seals
LM	12		GA

LM : metric Japan series	3~60	No symbol : Standard steel	No symbol : Resin^*1	No symbol: No seals
LME : metric Eupore series		M(G) : Stainless steel	GA : Metal	UU : Ends seals
