Linear Bearing Bush - LML
Containing two units of the standard retainer plate, this type is optimal for locations where a moment load is present.

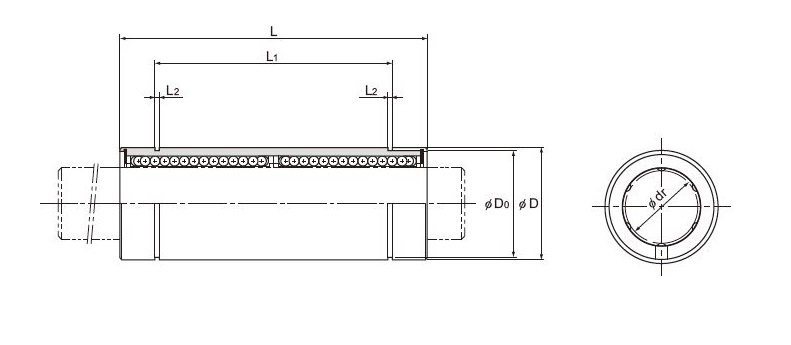

| Model No. | Ball rows | Main dimensions | Eccentricity (max) |
Radial clearance tolerance |
Basic load rating | Mass | ||||||||||
| Inscribed bore diameter | Outer diameter | Length | L1 | Tolerance | L2 | D0 | Dynamic rating C |
Static rating C0 |
||||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | |||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | µm | µm | N | N | g | ||
| LM3L | 4 | 3 | 0 -0.010 |
7 | 0 -0.013 |
19 | 0 -0.3 |
— | — | — | — | 10 | -2 | 139 | 216 | 3 |
| LM4L | 4 | 4 | 8 | 23 | — | — | — | 10 | -3 | 139 | 254 | 4 | ||||
| LM5L | 4 | 5 | 10 | 29 | 20 | 0 -0.3 |
1.1 | 9.6 | 10 | -3 | 263 | 412 | 8 | |||
| LM6L | 4 | 6 | 12 | 35 | 27 | 1.1 | 11.5 | 15 | -5 | 324 | 529 | 16 | ||||
| LM8L | 4 | 8 | 15 | 45 | 35 | 1.1 | 14.3 | 15 | -5 | 431 | 784 | 31 | ||||
| LM10L | 4 | 10 | 19 | 0 -0.016 |
55 | 44 | 1.3 | 18 | 15 | -5 | 588 | 1100 | 62 | |||
| LM12L | 4 | 12 | 21 | 57 | 46 | 1.3 | 20 | 15 | -5 | 657 | 1200 | 80 | ||||
| LM13L | 4 | 13 | 23 | 61 | 46 | 1.3 | 22 | 15 | -7 | 814 | 1570 | 90 | ||||
| LM16L | 5 | 16 | 28 | 70 | 53 | 1.6 | 27 | 15 | -7 | 1230 | 2350 | 145 | ||||
| LM20L | 5 | 20 | 0 -0.012 |
32 | 0 -0.019 |
80 | 61 | 1.6 | 30.5 | 20 | -9 | 1400 | 2750 | 180 | ||
| LM25L | 6 | 25 | 40 | 112 | 0 -0.4 |
82 | 0 -0.4 |
1.85 | 38 | 20 | -9 | 1560 | 3140 | 440 | ||
| LM30L | 6 | 30 | 45 | 123 | 89 | 1.85 | 43 | 20 | -9 | 2490 | 5490 | 580 | ||||
| LM35L | 6 | 35 | 0 -0.015 |
52 | 0 -0.022 |
135 | 99 | 2.1 | 49 | 25 | -13 | 2650 | 6270 | 795 | ||
| LM40L | 6 | 40 | 60 | 154 | 121 | 2.1 | 57 | 25 | -13 | 3430 | 8040 | 1170 | ||||
| LM50L | 6 | 50 | 80 | 192 | 148 | 2.6 | 76.5 | 25 | -13 | 6080 | 15900 | 3100 | ||||
| LM60L | 6 | 60 | 0 -0.020 |
90 | 0 -0.025 |
211 | 170 | 3.15 | 86.5 | 25 | -16 | 7650 | 20000 | 3500 | ||
| Model | Nominal shaft diameter (mm) | Case material | Retainer material | Seals |
| LM | 12 | GA | ||
| LM : metric Japan series | 3~60 | No symbol : Standard steel | No symbol : Resin*1 | No symbol: No seals |
| LME : metric Eupore series | M(G) : Stainless steel | GA : Metal | UU : Ends seals |
