Shaft End Support - SK
An aluminum-made light fulcrum for securing an LM shaft. The LM shaft mounting section has a slit, enabling the linear bushing to firmly secure an LM shaft using bolts.

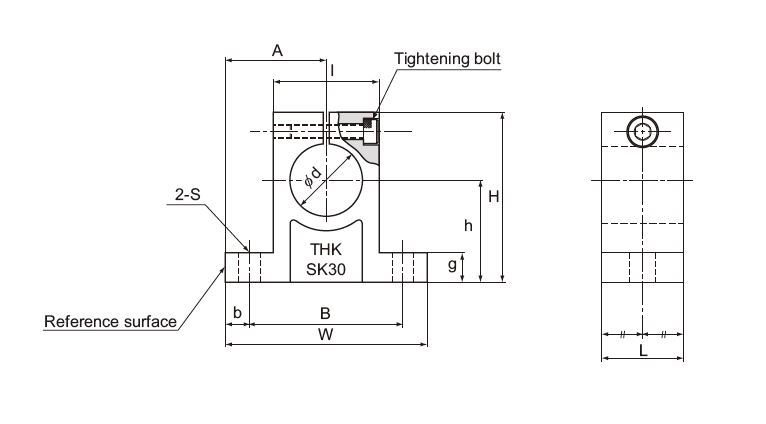

| Model No. | Main dimensions | Mass | ||||||||||||
| H | W | L | B | S | Mounting bolt model No. |
h ±0.02 |
A ±0.05 |
b | g | I | Shaft diameter d |
Mounting bolt model No. |
||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | g | |||
| SK10 | 32.8 | 42 | 14 | 32 | 5.5 | M5 | 20 | 21 | 5 | 6 | 18 | 10 | M4 | 24 |
| SK12 | 37.5 | 42 | 14 | 32 | 5.5 | M5 | 23 | 21 | 5 | 6 | 20 | 12 | M4 | 30 |
| SK13 | 37.5 | 42 | 14 | 32 | 5.5 | M5 | 23 | 21 | 5 | 6 | 20 | 13 | M4 | 30 |
| SK16 | 44 | 48 | 16 | 38 | 5.5 | M5 | 27 | 24 | 5 | 8 | 25 | 16 | M4 | 40 |
| SK20 | 51 | 60 | 20 | 45 | 6.6 | M6 | 31 | 30 | 7.5 | 10 | 30 | 20 | M5 | 70 |
| SK25 | 60 | 70 | 24 | 56 | 6.6 | M6 | 35 | 35 | 7 | 12 | 38 | 25 | M6 | 130 |
| SK30 | 70 | 84 | 28 | 64 | 9 | M8 | 42 | 42 | 10 | 12 | 44 | 30 | M6 | 180 |
| SK35 | 83 | 98 | 32 | 74 | 11 | M10 | 50 | 49 | 12 | 15 | 50 | 35 | M8 | 270 |
| SK40 | 96 | 114 | 36 | 90 | 11 | M10 | 60 | 57 | 12 | 15 | 60 | 40 | M8 | 420 |
