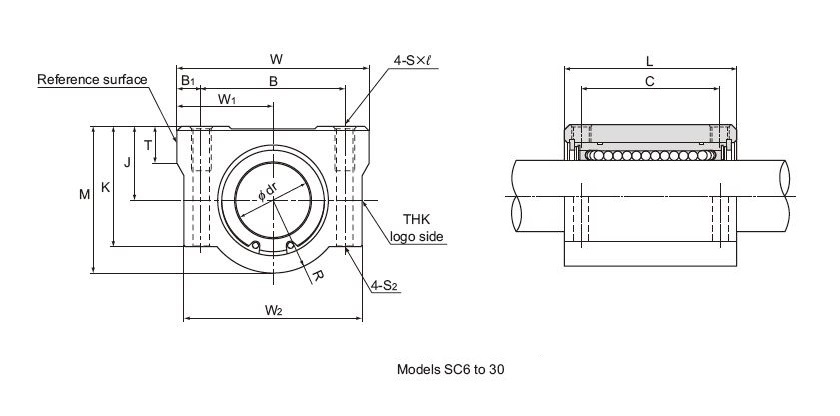

Linear Bearing with Housing - SC

It is a case unit where the standard type of Linear Bushing is incorporated into a small, lightweight aluminum casing. This model can easily be mounted simply by securing it to the table with bolts.


Model No.	Outer dimensions			LM casing dimensions													Model No. of Linear Bushing to be combined	Basic load rating		Mass
	Height M	Width W	Length L	Mounting hole position			Tap S × l	Through bolt S₂	Center height J ±0.02	W₁ ±0.02	K	W₂	T	R	Inscribed bore diameter			Dynamic rating C	Static rating C₀
	Height M	Width W	Length L	B	B₁	C	Tap S × l		Center height J ±0.02	W₁ ±0.02	K	W₂	T	R	dr	Tolerance		Dynamic rating C	Static rating C₀
	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm			N	N	g
SC6UU	18	30	25	20	5	15	M4×8	M3	9	15	15	28	6	9	6	0 -0.009	LM6UU	206	265	34
SC8UU	22	34	30	24	5	18	M4×8	M3	11	17	18	32	6	11	8		LM8UU	265	402	52
SC10UU	26	40	35	28	6	21	M5×12	M4	13	20	22	37	8	13	10		LM10UU	373	549	92
SC12UU	29	42	36	30.5	5.75	26	M5×12	M4	15	21	25	39	8	14	12		LM12UU	412	598	102
SC13UU	30	44	39	33	5.5	26	M5×12	M4	15	22	26	41	8	15	13		LM13UU	510	775	123
SC16UU	38.5	50	44	36	7	34	M5×12	M4	19	25	35	46	9	19.5	16		LM16UU	775	1180	189
SC20UU	42	54	50	40	7	40	M6×12	M5	21	27	36	52	11	21	20	0 -0.010	LM20UU	863	1370	237
SC25UU	51.5	76	67	54	11	50	M8×18	M6	26	38	41	68	12	25.5	25		LM25UU	980	1570	555
SC30UU	59.5	78	72	58	10	58	M8×18	M6	30	39	49	72	15	29.5	30		LM30UU	1570	2750	685


Model No.	Outer dimensions			LM casing dimensions																Model No. of Linear Bushing to be combined	Basic load rating		Mass
	Height M	Width W	Length L	Mounting hole position			Tap S × l	Through bolt S₂	Center height J ±0.02	W₁ ±0.02	K	W₂	W₃	L₁	T	R	R₁	Inscribed bore diameter			Dynamic rating C	Static rating C₀
	Height M	Width W	Length L	B	B₁	C	Tap S × l		Center height J ±0.02	W₁ ±0.02	K	W₂	W₃	L₁	T	R	R₁	dr	Tolerance		Dynamic rating C	Static rating C₀
	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm			N	N	g
SC35UU	68	90	80	70	10	60	M8×18	M6	34	45	54	85	60	42	18	34	5	35	0 -0.012	LM35UU	1670	3140	1100
SC40UU	78	102	90	80	11	60	M10×25	M8	40	51	62	96	80	44	20	38	8	40		LM40UU	2160	4020	1600
SC50UU	102	122	110	100	11	80	M10×25	M8	52	61	80	116	100	64	25	50	8	50		LM50UU	3820	7940	3350
